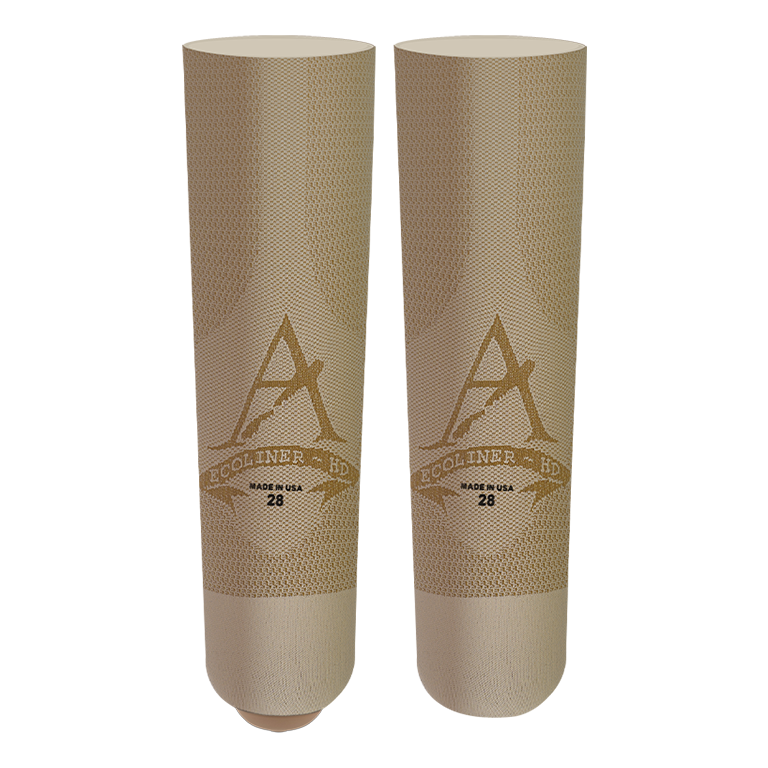

ALPS® Eco Liner™
PART # ECDTHD/ECFRHD
ALPS ECO Liner made of HD Gel is covered with an innovative seamless knitted fabric that ensures high levels of control and stability, improving comfort. It provides the maximum protection of the residual limb even for more active users.
It is indicated for patients with medium to high activity levels, whether with transtibial or transfemoral prostheses, and for those whose residual limbs present redundant soft tissues.
PRODUCT DESCRIPTION
DISTAL END TECHNOLOGY
The ALPS ECO Liner features a unique distal construction with reduced stretch to control distal distraction.
GEL TECHNOLOGY
The HD Gel relieves the residual limb from vertical and shear forces; at the same time, it makes the liner more compact.
FABRIC TECHNOLOGY
Using less energy to produce, the ECO Liner features a seamless knitted construction with a chic look.
KEY BENEFITS
Protects the residual limb thanks to the high capacity of the HD Gel to absorb vertical and shear forces.
Ensures maximum control of the prosthetic leg and minimizes soft tissue movement thanks to the High Density Gel.
Improved comfort due to the effect of the innovative seamless knitted fabric providing areas of varying levels of elasticity.
Does not constrict the residual limb and minimizes the pistoning effect thanks to the innovative U matrix (locking version).
TECHNICAL DETAILS
MATERIAL | HD GEL
AMPUTATION LEVEL
ACTIVITY LEVEL
THICKNESS
SUSPENSION
FABRIC | SEAMLESS KNIT
Eco Liner ECDTHD/ECFRHD Sizing Chart
Measure the circumference of the residual limb at 6 cm above the distal end.
| MEASURED SIZE (CM) | LOCKING 3MM OR 6MM | CUSHION 3MM OR 6MM |
|---|---|---|
| 20-23 cm | ECDTHD20-(3 or 6) | ECFRHD20-(3 or 6) |
| 24-25 cm | ECDTHD24-(3 or 6) | ECFRHD24-(3 or 6) |
| 26-27 cm | ECDTHD26-(3 or 6) | ECFRHD26-(3 or 6) |
| 28-31 cm | ECDTHD28-(3 or 6) | ECFRHD28-(3 or 6) |
| 32-34 cm | ECDTHD32-(3 or 6) | ECFRHD32-(3 or 6) |
| 35-37 cm | ECDTHD35-(3 or 6) | ECFRHD35-(3 or 6) |
| 38-43 cm | ECDTHD38-(3 or 6) | ECFRHD38-(3 or 6) |
| 44-53 cm | ECDTHD44-(3 or 6) | ECFRHD44-(3 or 6) |
DISTAL END CONSTRUCTION
The Eco Liner's distal end assembly process is unique and complex, involving several elements that fuse together to create a highly durable internal structure. This structure results in a liner that is guaranteed to provide the protection, comfort, durability, performance, and fit that users deserve.
