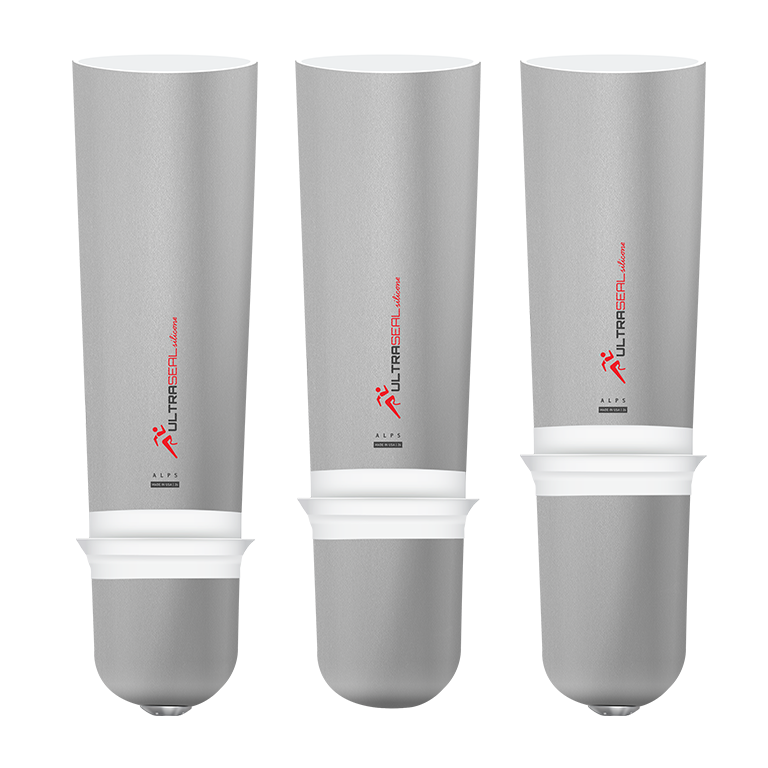

ALPS UltraSeal Silicone Liner
PART # USHSL/USHSC/USLSL/USLSC
Experience the innovative UltraSeal silicone liner, carefully crafted to meet
the needs of both transtibial and transfemoral amputees at all activity levels.
With an integrated band available at two different heights, users will enjoy an airtight seal upon socket entry. Combined with OptiSil, it provides exceptional comfort and optimized suspension for maximum convenience in daily use.
Additionally, the UltraSeal offers a dual suspension system that seamlessly
harnesses the advantages of both locking suspension and Seal-In technology, delivering unmatched functionality.
PRODUCT DESCRIPTION
SEALING TECHNOLOGY
Features a single-sealing band to ensure a secure hold- available at two different heights.
SILICONE TECHNOLOGY
OptiSil offers a smooth inner surface that conforms to the contours of the residual limb, cushioning it and reducing friction and irritation.
FABRIC TECHNOLOGY
Premium fabric covering limits excessive stretch and pistoning.
HYPOBARIC SUSPENSION
Available in Locking (U-Band) and Cushion.
KEY BENEFITS
LESS CONSTRICTIVE.
Outer knitted fabric combines strength, durability, and differentiated stretch for comfortable elasticity.
LOCKING SECURITY.
The locking feature ensures users are provided with a suspension that is secure, firm, and comfortable.
FRIENDLY SILICONE SURFACE.
OptiSil offers a thin, lightweight, and smooth inner surface with 1/5 the friction of regular silicone, ensuring superior skin conformance.
TECHNICAL DETAILS
MATERIAL
AMPUTATION LEVEL
ACTIVITY LEVEL
THICKNESS
SUSPENSION
FABRIC | GRAY

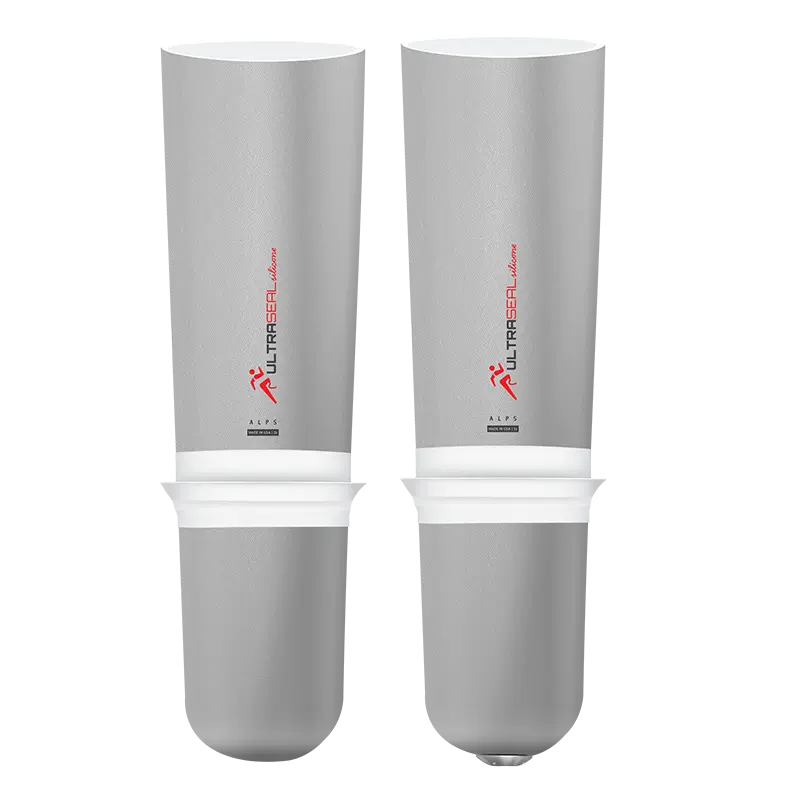

UltraSeal Silicone Liner (High Ring) Sizing Chart
Ring: The high ring begins 7 inches from the center of the distal end.
How to Size: Measure the circumference of the residual limb at 6 cm above the distal end.
| MEASURED SIZE (CM) | HIGH RING LOCKING 2MM UNIFORM | HIGH RING CUSHION 2MM UNIFORM |
|---|---|---|
| 20-21 cm | USHSL20 | USHSC20 |
| 22-23 cm | USHSL22 | USHSC22 |
| 24-25 cm | USHSL24 | USHSC24 |
| 26-27 cm | USHSL26 | USHSC26 |
| 28-29 cm | USHSL28 | USHSC28 |
| 30-31 cm | USHSL30 | USHSC30 |
| 32-34 cm | USHSL32 | USHSC32 |
| 35-37 cm | USHSL35 | USHSC35 |
| 38-40 cm | USHSL38 | USHSC38 |
| 41-43 cm | USHSL41 | USHSC41 |
| 44-47 cm | USHSL44 | USHSC44 |

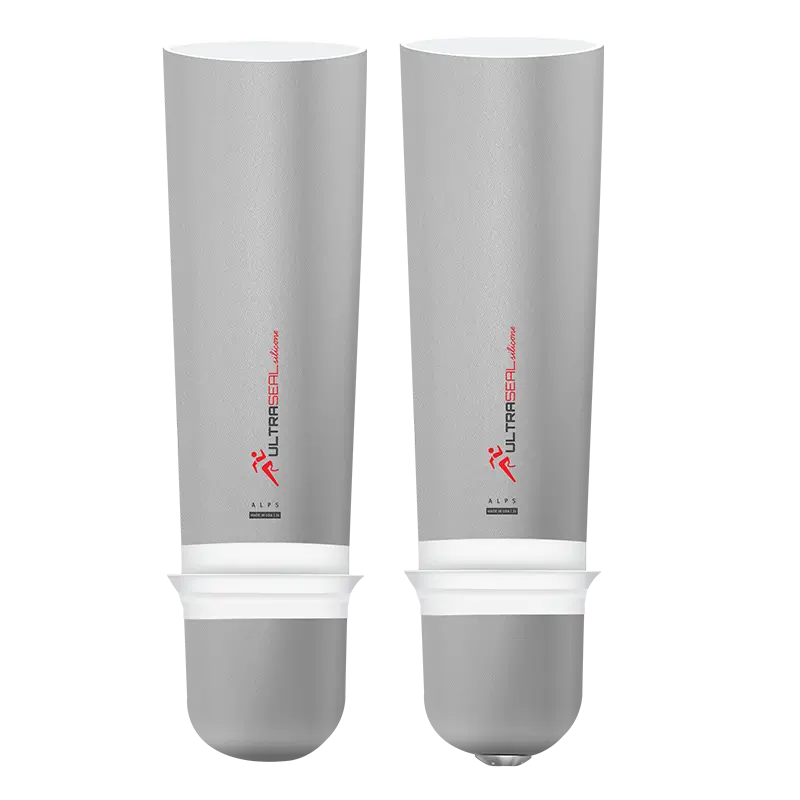

UltraSeal Silicone Liner (Low Ring) Sizing Chart
Ring: The low ring begins 5 inches from the center of the distal end.
How to Size: Measure the circumference of the residual limb at 6 cm above the distal end.
| MEASURED SIZE (CM) | LOW RING LOCKING 2MM UNIFORM | LOW RING CUSHION 2MM UNIFORM |
|---|---|---|
| 20-21 cm | USLSL20 | USLSC20 |
| 22-23 cm | USLSL22 | USLSC22 |
| 24-25 cm | USLSL24 | USLSC24 |
| 26-27 cm | USLSL26 | USLSC26 |
| 28-29 cm | USLSL28 | USLSC28 |
| 30-31 cm | USLSL30 | USLSC30 |
| 32-34 cm | USLSL32 | USLSC32 |
| 35-37 cm | USLSL35 | USLSC35 |
| 38-40 cm | USLSL38 | USLSC38 |
| 41-43 cm | USLSL41 | USLSC41 |
| 44-47 cm | USLSL44 | USLSC44 |
DISTAL END CONSTRUCTION
The UltraSeal Liner's distal end assembly process is unique and complex, involving several elements that fuse together to create a highly durable internal structure. This structure results in a liner that is guaranteed to provide the protection, comfort, durability, performance, and fit that users deserve.
