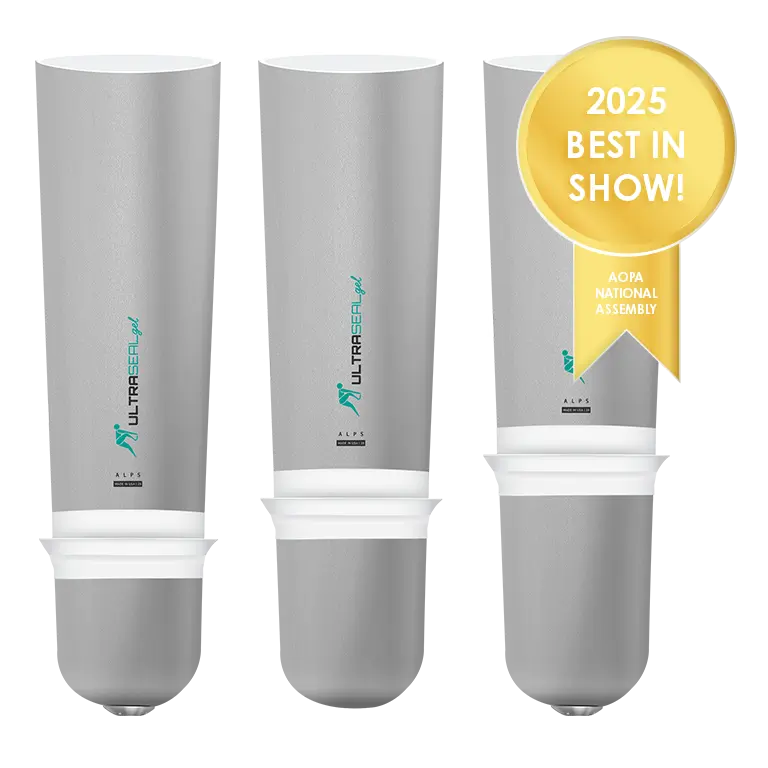

ALPS UltraSeal Gel Liner
PART # USHGL/USHGC/USLGL/USLGC
Introducing the revolutionary UltraSeal gel liner—a groundbreaking product that seamlessly integrates advanced seal-in technology with the superior benefits of gel.
With an integrated band available at two different heights, users will experience an airtight seal upon socket entry. When combined with OptiGel, this liner offers exceptional comfort and excellent conformity to the residual limb, ensuring a secure and snug fit that enhances control, comfort, and safety.
PRODUCT DESCRIPTION
SEALING TECHNOLOGY
Features a single-sealing band to ensure a secure hold- available at two different heights.
GEL TECHNOLOGY
OptiGel provides unmatched comfort and excellent conformity to the residual limb.
FABRIC TECHNOLOGY
Premium fabric covering limits excessive stretch and pistoning.
HYPOBARIC SUSPENSION
Available in Locking (U-Band) and Cushion.
KEY BENEFITS
It's the only seal-in liner available in gel.
OptiGel has a smooth, soft texture that ensures gentle skin contact and a tailored fit around the residual limb.
It's made with less constrictive fabric.
Outer knitted fabric combines strength, durability, and differentiated stretch for comfortable elasticity.
It's available in both locking and cushion.
The locking feature ensures users are provided with a suspension that is secure, firm, and comfortable.
TECHNICAL DETAILS
MATERIAL
AMPUTATION LEVEL
ACTIVITY LEVEL
THICKNESS
SUSPENSION
FABRIC | GRAY
UltraSeal Gel Liner (High Ring) Sizing Chart
Ring: The high ring begins 7 inches from the center of the distal end.
How to Size: Measure the circumference of the residual limb at 6 cm above the distal end.
| MEASURED SIZE (CM) | HIGH RING LOCKING 3MM UNIFORM | HIGH RING CUSHION 3MM UNIFORM |
|---|---|---|
| 20-21 cm | USHGL20-3 | USHGC20-3 |
| 24-25 cm | USHGL24-3 | USHGC24-3 |
| 26-27 cm | USHGL26-3 | USHGC26-3 |
| 28-29 cm | USHGL28-3 | USHGC28-3 |
| 32-34 cm | USHGL32-3 | USHGC32-3 |
| 35-37 cm | USHGL35-3 | USHGC35-3 |
| 38-40 cm | USHGL38-3 | USHGC38-3 |
| 44-47 cm | USHGL44-3 | USHGC44-3 |
UltraSeal Gel Liner (Low Ring) Sizing Chart
Ring: The low ring begins 5 inches from the center of the distal end.
How to Size: Measure the circumference of the residual limb at 6 cm above the distal end.
| MEASURED SIZE (CM) | LOW RING LOCKING 3MM UNIFORM | LOW RING CUSHION 3MM UNIFORM |
|---|---|---|
| 20-21 cm | USLGL20-3 | USLGC20-3 |
| 24-25 cm | USLGL24-3 | USLGC24-3 |
| 26-27 cm | USLGL26-3 | USLGC26-3 |
| 28-29 cm | USLGL28-3 | USLGC28-3 |
| 32-34 cm | USLGL32-3 | USLGC32-3 |
| 35-37 cm | USLGL35-3 | USLGC35-3 |
| 38-40 cm | USLGL38-3 | USLGC38-3 |
| 44-47 cm | USLGL44-3 | USLGC44-3 |

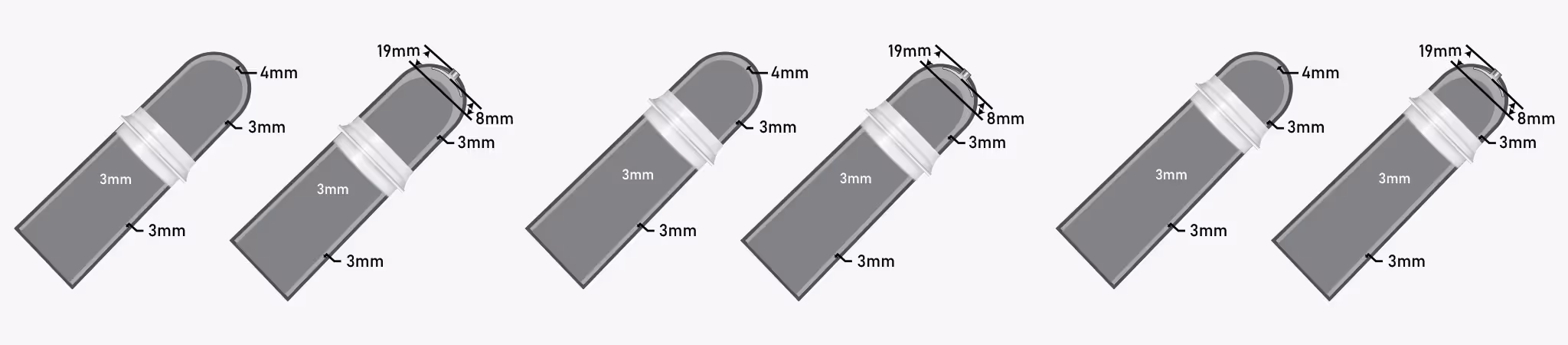

DISTAL END CONSTRUCTION
The UltraSeal Liner's distal end assembly process is unique and complex, involving several elements that fuse together to create a highly durable internal structure. This structure results in a liner that is guaranteed to provide the protection, comfort, durability, performance, and fit that users deserve.
