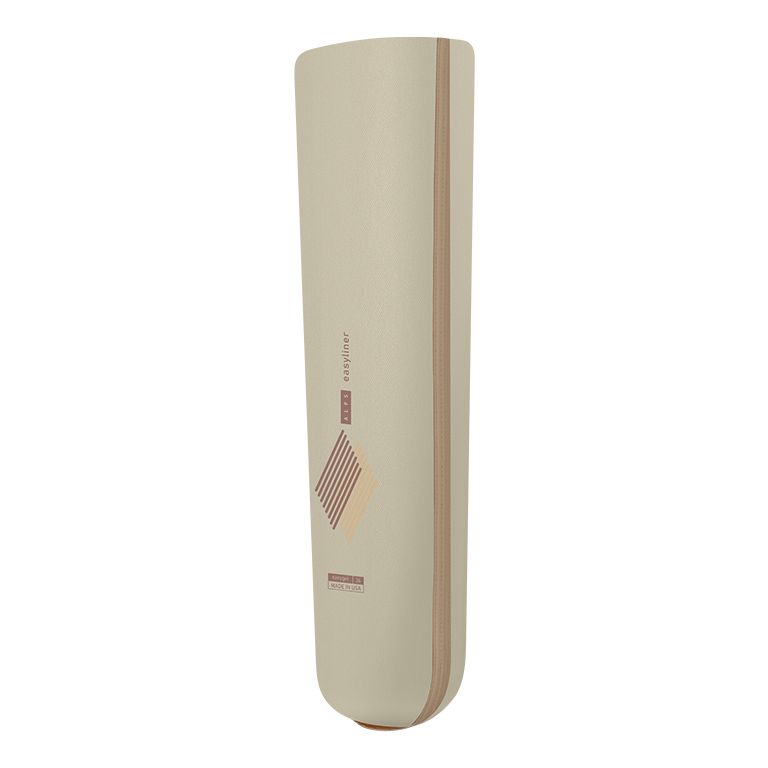

ALPS EasyLiner®
PART # ELDT/ELFR
ALPS EasyLiner® is a prosthetic gel liner containing an antioxidant that is an effective scavenger of free radicals, and hydroxyl groups, with beneficial effects on the skin of the residual limb. It provides a combination of softness, strength, and cushioning thanks to ALPS EasyGel.
It is recommended for diabetic patients and those with sensitive skin whenever the comfort and the protection of the residual limb is a priority.
PRODUCT DESCRIPTION
GEL TECHNOLOGY
Contains a prolonged-released antioxidant, an effective scavenger of free radicals and hydroxyl groups, with beneficial effects on the skin.
FABRIC TECHNOLOGY
Delicately conforms to the shape of the residual limb and does not restrict blood flow.
LOCKING & CUSHION SUSPENSION
The locking version features a Reinforced Matrix to prevent distal pistoning and contain redundant tissue.
KEY BENEFITS
Indicated for delicate skin and diabetic patients thanks to the antioxidants contained in the gel.
Protects the residual limb thanks to the high capacity of the EasyGel to absorb vertical and shear forces.
Further relieves the skin from stress generated by shear forces thanks to its low coefficient of static friction.
Provides the softness, strength, and cushioning from ALPS EasyGel, relieving the residual limb from the stress created by vertical and shear forces.
Easy to don also for patients with reduced manual dexterity.
TECHNICAL DETAILS
MATERIAL | EASYGEL
AMPUTATION LEVEL
ACTIVITY LEVEL
THICKNESS
SUSPENSION
FABRIC | BEIGE
EasyLiner ELDT/ELFR Sizing Chart
Measure the circumference of the residual limb at 6 cm above the distal end.
| MEASURED SIZE (CM) | LOCKING 3MM, 6MM, 6/3MM OR 9MM | CUSHION 3MM, 6MM, 6/3MM OR 9MM |
|---|---|---|
| 10-15 cm | N/A | ELFR10-(3 or 6) |
| 16-19 cm | ELDT16-(3, 6, or 6/3) | ELFR16-(3, 6, or 6/3) |
| 20-23 cm | ELDT20-(3, 6, or 6/3) | ELFR20-(3, 6, or 6/3) |
| 24-25 cm | ELDT24-(3, 6, 6/3, or 9) | ELFR24-(3, 6, 6/3, or 9) |
| 26-27 cm | ELDT26-(3, 6, or 6/3) | ELFR26-(3, 6, or 6/3) |
| 28-31 cm | ELDT28-(3, 6, 6/3, or 9) | ELFR28-(3, 6, 6/3, or 9) |
| 32-34 cm | ELDT32-(3, 6, or 6/3) | ELFR32-(3, 6, or 6/3) |
| 35-37 cm | ELDT35-(3 or 6) | ELFR35-(3 or 6) |
| 38-43 cm | ELDT38-(3, 6, or 6/3) | ELFR38-(3, 6, or 6/3) |
| 44-53 cm | ELDT44-(3, 6, or 6/3) | ELFR44-(3, 6, or 6/3) |
Distal End Construction
EasyLiner's distal end assembly process is unique and complex, involving several elements that fuse together to create a highly durable internal structure. This structure results in a liner that is guaranteed to provide the protection, comfort, durability, performance, and fit that users deserve.
