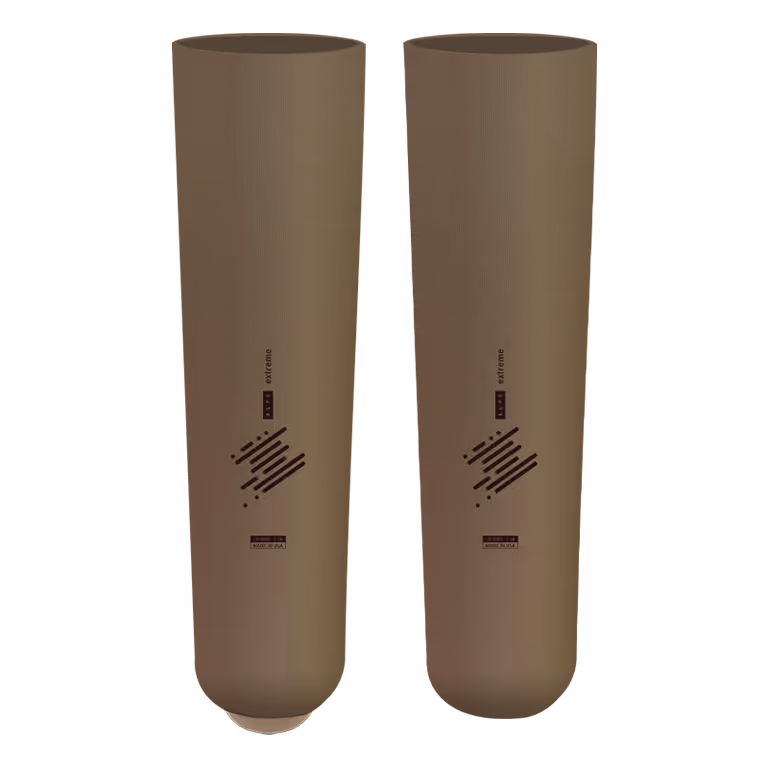

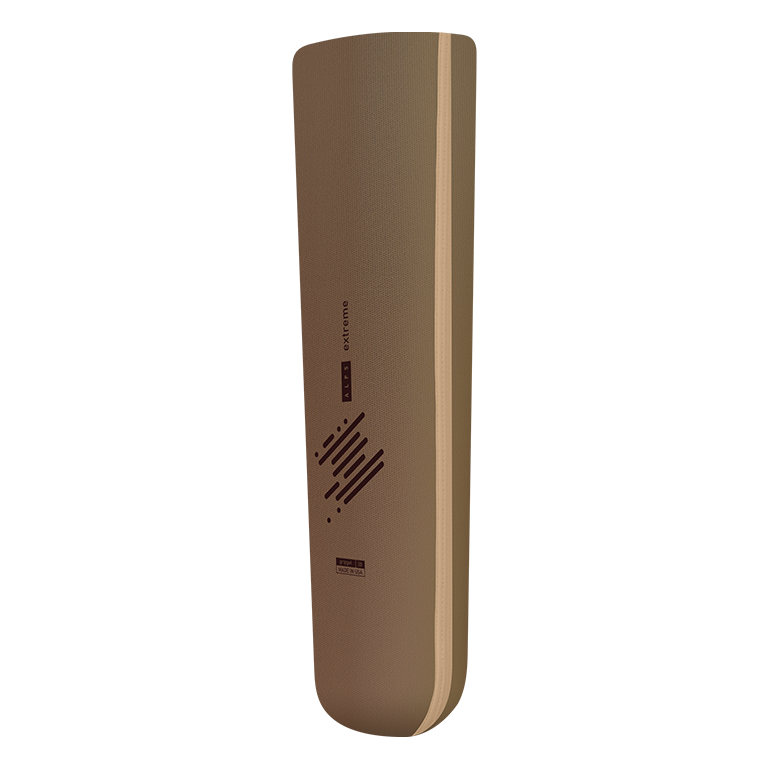

ALPS Extreme™ Liner

PART # AKDT/AKFR

ALPS Extreme Liner is a prosthetic liner made of Grip Gel that ensures excellent adhesion to the residual limb, improving control of the prosthesis without limiting comfort.

It is recommended for patients, both transfemoral and transtibial, with medium activity levels whose skin is in good condition and who aim to maintain a good level of control of the prosthetic leg.

Product Description


ALPS Extreme prosthetic liner combines softness, strength, and cushioning from our Grip Gel with a fabric with limited vertical stretch.

It improves the control of the prosthetic leg and reduces pistoning, while still providing superior protection of the residual limb.

The superior adhesion of the Grip Gel allows the safe suspension of the prosthetic leg.


The result is a comfortable liner, indicated for patients with low and medium activity levels.


Key Benefits

Protects the residual limb thanks to the high capacity of the Grip Gel to absorb vertical and shear forces.

.

Improves control of the prosthetic leg thanks to the limited vertical stretch of the fabric.

Reduces pistoning thanks to the fabric's limited vertical stretch and the distal matrix (locking version).

Safe suspension of the prosthesis due to the superior adhesive properties of the Grip Gel.

Technical Details

GRIP GEL

MATERIAL | GRIPGEL

The tackiness of ALPS Grip Gel helps in reducing bunching in the popliteal area. Best for use on amputees with healthy skin tissue.
BROWN FABRIC ICON

FABRIC | BROWN

Brown fabric with reduced vertical stretch.

MEASURED SIZE (CM) LOCKING 3MM OR 6MM UNIFORM CUSHION 3MM OR 6MM UNIFORM
16-19 cm AKDT16-(3 or 6) AKFR16-(3 or 6)
20-23 cm AKDT20-(3 or 6) AKFR20-(3 or 6)
24-25 cm AKDT24-(3 or 6) AKFR24-(3 or 6)
26-27 cm AKDT26-(3 or 6) AKFR26-(3 or 6)
28-31 cm AKDT28-(3 or 6) AKFR28-(3 or 6)
32-34 cm AKDT32-(3 or 6) AKFR32-(3 or 6)
35-37 cm AKDT35-(3 or 6) AKFR35-(3 or 6)
38-43 cm AKDT38-(3 or 6) AKFR38-(3 or 6)
44-53 cm AKDT44-(3 or 6) AKFR44-(3 or 6)

Distal End Construction

The Extreme Liner's distal end assembly process is unique and complex, involving several elements that fuse together to create a highly durable internal structure. This structure results in a liner that is guaranteed to provide the protection, comfort, durability, performance, and fit that users deserve.

Associated Patent:
U.S. 6,454,812
